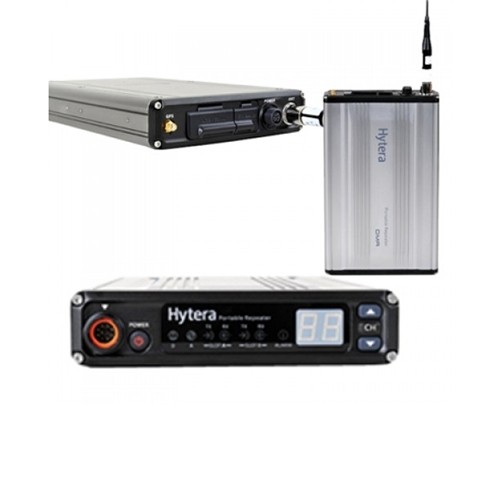

RD965 Digital Portable Repeater

Features

Smart Battery (optional)
A 10Ah smart Li-Ion battery can support at least eight hours of work when working at 50% duty cycle and high TX power. Compatible with the smbus1.1 standard, RD96X can monitor battery conditions such as estimated remaining capacity, used capacity percentage, and usage record; the device can also maximize the battery life; through smart charge management, it can automatically recharge the battery for use anytime; powered by three levels of battery protection, the device considerably enhances charging safety and reliably.



Repeater Diagnostics and Control
Through a PC-based application, the product can monitor, diagnose and control remote (connected to the Internet via an IP port) and local repeaters (via a USB port), thus increasing the productivity. Hytera's RDAC software supports network access at multiple points and allows the administrator to monitor networked two-way radios.

Voice Input/output via Dual Time Slots: easy for monitoring and voice recording
In digital mode, the device supports voice input and output via dual time slots and enables users to record calls continuously.

Digital/analog Compatibility and Smart Switching
Back to back interconnection of digital & analog network can be achieved by wired or wireless IP, ensuring a smooth analog -to-digital transition.

Flexible Networking
By connecting geographically distributed repeaters that run at the same or different frequencies to form an IP-based and location-independent wireless communication network, IP-based repeater interconnection allows mobile radios to obtain voice and data services while roaming.

16 Channels
The product supports up to 16 channels. You can switch between channels using PCbased RDAC software, the channel selector knob on the front panel, or the external interface on the repeater.

Digital-analog Interconnection for Smooth Transition
The feature enables two-way radios with digital and analog capabilities, and digital and analog users to intercommunicate in different operating modes to guarantee users' seamless transition from analog to digital capabilities.

GPS
The GPS module supports GPS data transmission and enables emergency command centers to monitor the location of a small mobile network in real time.

Frequency Range

VHF 136-174MHz
UHF1 400-470MHz
UHF3 350-400MHz

Channel Capacity

16

Channel Spacing

12.5kHz/20kHz/25kHz

Operating Voltage

DC: 13.6 V±15% Battery: 14.8V

Current Drain

Standby

<0.5A

Transmit

<2.5A

Frequency Stability

±0.5ppm

Battery

10Ah(Li-lon)

Battery Life(50-50 Duty Cycle, High TX Power)

8h

Antenna Impedance

50Ω

Dimensions (H×W×D)

301x184x51mm (with protective shell)
291x172x41mm (without protective shell)

Weight

<3.0kg
