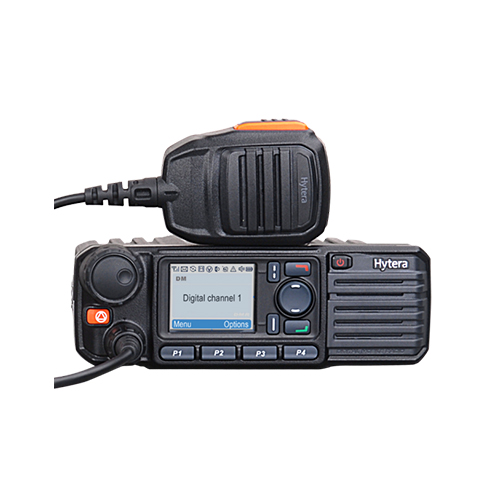

MD785 Digital Mobile Radio

Features

User-centered Design

The large-size color display allows good visibility even under extremely strong light. And the seven programmable keys facilitate your communication in various conditions.

Reliable Quality

MD78X/78XG is strictly compliant with MIL-STD-810 C/D/E/F/G and IP54 standards, ensuring outstanding performance even under harsh environments.

Superior Voice

With the combined application of narrowband codec and digital errorcorrection technologies, MD78X/78XG is capable of ensuring you superior voice under noisy environments or at the edge of the coverage area. In addition, the adoption of the AGC technology also optimizes your voice. With a built-in 4W speaker, MD78X/78XG ensures clear and crisp voice communication.

Higher Spectrum Efficiency, Higher Channel Capacity

Benefiting from the TDMA technology, MD78X/78XG allows twice the channels based on the same spectrum resource. This is a big help to relieve the stress of increasing shortage in spectrum resource.

Dual-slot Pseudo Trunk

With this feature, the free slot can be allocated to a member that needs to communicate, effectively enhancing frequency efficiency and allowing you to communicate timely under emergency situations.

Secure Communication

Besides the intrinsic encryption of the digital technology, MD78X/78XG provides enhanced encryption capability (such as 256-bit encryption algorithm) and the Scrambler feature (selectable).

Versatile Services

In addition to conventional communication services, MD78X/78XG features rich data services and selectable functions such as Text Message, Scan, Emergency, Channel Steering, Auto Registration and Lone Worker.

Further Development Port

The reserved front and rear port in MD78X/78XG allows users or any third party partner to further develop other helpful applications to extend the radio functionalities!

Frequencies

UHF1: 400-470MHz; UHF2: 450-520MHz; UHF3: 350-400MHz; UHF5: 804-941MHz; VHF:136-174MHz

Channel Capacity

1024

Zone Capacity

64(each with a maximum of 16 channels)

Channel Spacing

12.5KHz /20KHz/25KHz*

Operating Voltage

13.6 V ±15%

Current Drain

Standby

< 0.6A

Receive

< 2.0A

Transmit

5W

< 5A

25W

< 8A

45W/50W

< 12A

Frequency Stability

±1.5 ppm

Antenna Impedance

50Ω

Dimensions (H×W×D)

60×174×200 mm

Weight

1.7Kg

LCD Display

220×176 pixels, 262000 colors 2.0 inch, 4 rows
