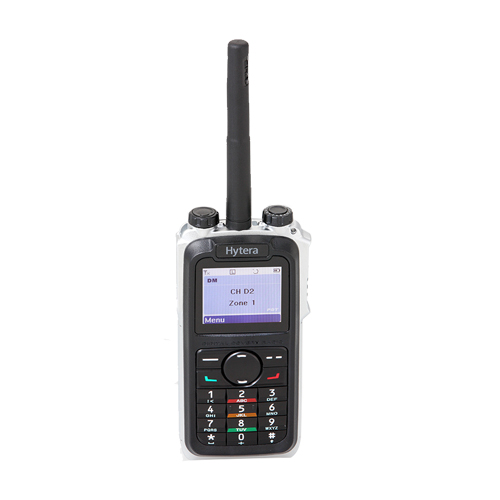

 X1P Digital Portable Radio

Features

Advanced encryption
AES encryption algorithm & 256 digit dynamic encryption keys ensure secure communication.

Supports Hytera BT accessories
The radio supports Hytera BT accessories: EHW02, Bluetooth earpiece; POA47, Bluetooth Ring PTT.

Open USB interface
Open USB port facilitates secondary and application development.

GPS positioning
The built-in GPS module supports GIS applications.

Dual mode (analog & digital)
Dual modes (analog & digital) operation ensures a smooth analog-to-digital migration.

Versatile voice calls
Versatile voice calls include individual call, group call and all-call.

Vibration
Vibration alerts the reception of voice call and message.

Rich signaling
Supports multiple advanced analog signaling, including HDC1200, DTMF, 2-Tone and 5-Tone, providing more expansion capacity.

Software upgradable
Upgradable software enables new features without buying a new radio.



Frequency range

VHF: 136 - 174 MHz
UHF: 400 - 470 MHz

Supported operation modes

DMR Tier II (DMR conventional), Simulcast
XPT
DMR Tier III (DMR trunking)
Analog, MPT 1327
DMR Tier II in reference to ETSI TS 102 361-1/2/3
DMR Tier III in reference to ETSI TS 102 361- 1/2/3/4

Channel capacity

1024

Number of zones

64

Channel spacing (analog)

12.5 / 20 / 25 kHz

Channel spacing (digital)

12.5 kHz

Operating voltage

7.4 V (nominal)

Standard battery

1100 mAh (lithium-ion battery)

Battery service life (analog)
(5-5-90 duty cycle, high transmitting power,

standard battery)

approx. 8 hours

Battery service life (digital)
(5-5-90 duty cycle, high transmitting power,

standard battery)

approx. 10 hours

Frequency stability

±1.5 ppm

Antenna impedance

50 Ω

Dimensions (H × W × D)
(with standard battery, without antenna)

119.5 × 57 × 21 mm (1100 mAh, lithium-ion battery)
119.5 × 57 × 23 mm (1400 mAh, lithium-ion battery)
119.5 × 57 × 26 mm (1800 mAh, lithium-ion battery)

Weight (with standard battery and antenna)

approx. 240 g (1100 mAh, lithium-ion battery)
approx. 260 g (1400 mAh, lithium-ion battery)
approx. 280 g (1800 mAh, lithium-ion battery)

LCD display

160 x 128 pixels, 65,536 colours, 1.8 inches, 4 lines
