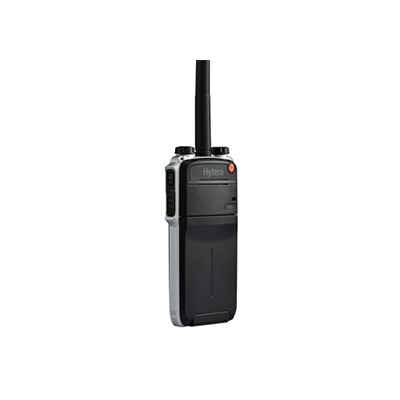

X1e Digital Portable Radio
Features
Advanced encryption
AES encryption algorithm & 256 digits dynamic encryption key ensures secure communication.
Support Hytera BT earpieces
The radio supports Hytera BT accessories: EHW02, BT earpiece; POA47, BT Ring PTT.
Open USB interface
Open USB port facilitates secondary and application development.
GPS positioning
The built-in GPS module supports GIS applications.
Dual modes (analog & digital)
Dual modes (analog & digital) operation ensures a smooth analog-to-digital migration.
Versatile voice calls
Versatile voice calls include individual call, group call and all-call.
Vibration
Vibration alerts the reception of voice call and message.
Rich signaling
Support multiple advanced analog signaling, including HDC1200, DTMF, 2-Tone and 5-Tone, providing more expansion capacity.
Sofware upgradable
Upgradable software enables new features without buying a new radio.
|
Frequency range |
VHF: 136 - 174 MHz |
|
Supported operation modes |
· DMR Tier II (DMR conventional), Simulcast · XPT Digital Trunking · DMR Tier III (DMR trunking) · Analog, MPT 1327 DMR Tier II in reference to ETSI TS 102 361-1/2/3 |
|
Channel capacity |
1024 |
|
Number of zones |
3 |
|
Channel spacing (analog) |
12.5 / 20 / 25 kHz |
|
Channel spacing (digital) |
12.5 kHz |
|
Operating voltage |
7.4 V (nominal) |
|
Standard battery |
1400 mAh (lithium-ion battery) |
|
Battery service life (digital, with lithium-ion battery) |
ca. 10 h (with 1100 mAh battery) |
|
Frequency stability |
±1.5 ppm |
|
Antenna impedance |
50 Ω |
|
Dimensions (H × W × D) |
119.5 × 57 × 18 mm (1100 mAh battery) |
|
Weight (with battery and antenna) |
about 220 g (1100 mAh battery) |
