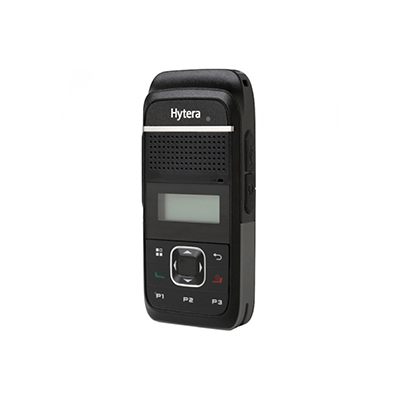

PD355 Digital Handheld Radio
Digital radio never looked so good
The PD355 excels through itsstylish and compact design in smartphone format and itsintuitive operation. With a weight of only 160 g, it can be carried conveniently even on long working days.
Support of analog and digital radio
ThePD355was developed in compliance with the ETSI mobile radio standard Digital Mobile Radio (DMR). The handheld radio support the conventional DMR operation and can also be operated inanalog mode.
Integrated antenna design
The unique integrated antenna design enables excellent availability without a large antenna on the handheld.
Affordable pricing
The radios of the PD3 series offer not only many functions, but also a quick, no-nonsense start into digital mobile radio at a fair price.
Long battery service life
The lithium-ion batteries (2000 mAh) included in the delivery enable thePD355to achieve an operating time of at least 12 hours in digital mode, with a duty cycle of 5-5-90.
Additional functions (selection)
·Selectable transmitting power: 1.5 W or 3 W
·Analog signaling: CTCSS, CDCSS
·Dust and water protection according to IP54
·Shock and vibration resistance according to MIL-STD-810 C/D/E/F/G
·DMR text messages with up to 64 characters
·Four programmable keys
·Charging and programming via Micro-USB interface
·Scan function for analog and digital channels
·Versatile voice calls: Individual call, group call and broadcast call on digital channels
|
Frequency range |
UHF: 400 - 440 MHz, 430 - 470 MHz |
|
Supported operation modes |
· DMR Tier II (DMR conventional) · Analog DMR Tier II in reference to ETSI TS 102 361-1/2/3 |
|
Channel capacity |
256 |
|
Zone capacity |
16 |
|
Channel spacing |
12.5 / 25 kHz (analog) |
|
Operating voltage |
3.7 V (nominal) |
|
Battery |
2000 mAh (lithium-ion battery) |
|
Battery service life (5/5/90) |
approx. 10 h (analog) |
|
Frequency stability |
±0.5 ppm |
|
Antenna impedance |
50 Ω |
|
Dimensions (H×W×D) |
123 × 58 × 23 mm |
|
Weight |
approx. 160 g
|
