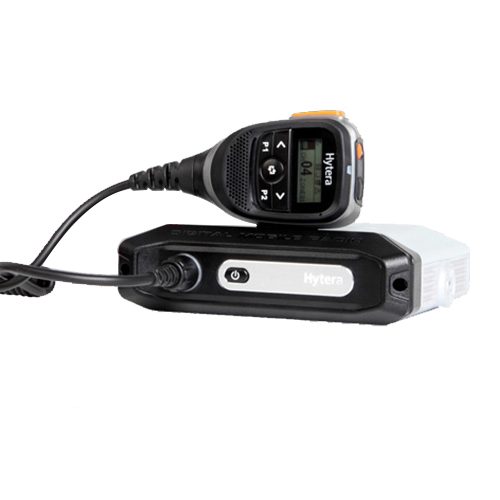

MD655 Mobile Radio

Intuitive operation
The MD655/MD655G is operated completely via the handheld microphone, which contains all necessary buttons and also an LCD display. On top of that, two buttons can be freely programmed to assign important functions to them.

Compact design
The MD655/MD655G excels through its stylish and particularly compact design. With its dimensions (165 × 46 × 140 mm) and a weight of only 1050 g, the mobile radio can be used in a multitude of ways.
Various installation options
With its operation via handheld microphone, the MD655/MD655G can be installed at any suitable location in the vehicle.

Adaptable transmitting power
Programming the MD655/MD655G allows adapting the transmitting power from 1 W up to 25 W.

Analog and digital mobile radio (dual mode)
In the MD655/MD655G, it is possible to configure analog as well as digital channels. With the channel selection, this enables easily switching between analog and digital.

Improved utilization of the frequency spectrum
Thanks to Pseudo Trunking and the TDMA procedure, the MD655/MD655G allowsassigning the available bandwidth with twice the number of channels. This has a clear mitigating effect on increasing spectrum scarcity.

Expansion interface
Thanks to the expansion interface, the range of functions offered by the MD655/MD655G can be expanded by significant functions. Accessories and applications developed by partners can be connected to this interface.

Functions (excerpt)

·Optional analog or digital operation

·Versatile voice calls: Individual call, group call, broadcast call, emergency call, data call

·GPS functions (MD655G only)
-Send GPS text messages

·Data services
- Text messages
- Group text messages
- Control of the radio via API

·Different types of analog signaling: HDC1200, 2-tone and 5-tone dialing

·Priority Interrupt (optional)

·Automatic cell re-selection (roaming) in IP multi-site systems

·Analog scrambling

·Secure encryption with encryption algorithm ARC4 (40 bit) in accordance with DMRA or with optional algorithms AES128 and AES256 (128 and 256 bit)

·Upgradeable software

Frequency range

VHF: 136 - 174 MHz
UHF: 400 - 470 MHz

Supported operation modes

· DMR Tier II (DMR conventional), Simulcast

· XPT

· Analog

DMR Tier II in reference to ETSI TS 102 361-1/2/3

Channel capacity

1024

Zone Capacity

64 (with max. 16 channels each)

Channel spacing (analog)

12.5 / 20 / 25 kHz

Channel spacing (digital)

12.5 kHz

Operating voltage

13.6 ±15 % VDC

Max. power consumption (in stand by)

≤ 0.6 A

Max. power consumption (during reception)

≤ 2.0 A

Max. power consumption (during transmission)

1 W: < 3 A
25 W: < 8 A

Frequency stability

±0.5 ppm

Antenna impedance

50 Ω

Dimensions (W × H × L)

165 x 46 x 140 mm

Weight

1050 g

LCD display

vie handheld microphone
